High Quality Disc Coupling TAL production base
Product Description
Advantages of disc coupling
1. Eliminates the need for lubrication and coupling maintenance
2. Coupling can be inspected without disassembly
3. Condition of disc packs can be inspected with a strobe light while the machine is running
4. Note: It is not recommended that couplings be operated without coupling guards.
5. Easy to assess equipment misalignment
6. TorWe warmly welcome the friends from all the world!sionally rigid without any backlash
7. No wearing parts
8. Resistance to harsh environments
9. Long life when properly sized and aligned
10. High power density (higher torque for a given outside diameter)
TAL series
- Suitable for middle/low speed, long spacer distance applications
- Simple structure, easy mounting and dismounting, small dimensions, light weight, high torque
- Absorb larger misalignments, low noise, long service life, maintenance free
- Apply to pumps, fans, rolling mill, etc.
HangZhou EPT Couplings Co., Ltd.-HangZhou EPT Couplings Co., Ltd.

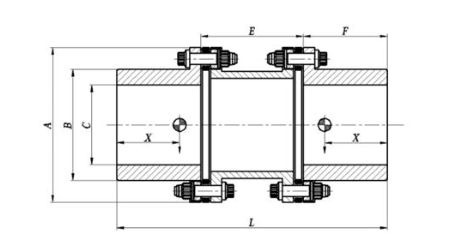

Fundamental dimensions:
|
Model NO. |
Power/Speed (Kw/rpm) |
Nominal torque (KNm) |
Peak torque (KNm) |
Max speed (r/min) |
A (mm) |
B (mm) |
C max (mm) |
E(mm) |
F (mm) |
L(mm) |
|
TAL6115 |
0.072 |
0.68 |
2.4 |
15000 |
115 |
74 |
50 |
110 |
55 |
220 |
|
TAL6135 |
0.16 |
1.52 |
3.3 |
12000 |
135 |
94 |
65 |
110 |
70 |
250 |
|
TAL6152 |
0.22 |
2.1 |
6.1 |
11000 |
152 |
107 |
75 |
120 |
80 |
280 |
|
TAL6175 |
0.39 |
3.7 |
10.8 |
10000 |
175 |
122 |
85 |
130 |
90 |
310 |
|
TAL6196 |
0.49 |
4.6 |
12.4 |
9000 |
196 |
133 |
95 |
160 |
100 |
360 |
|
TAL6210 |
0.54 |
5.15 |
14.2 |
7500 |
210 |
147 |
105 |
160 |
110 |
380 |
|
TAL6231 |
0.86 |
8.21 |
24.1 |
6700 |
231 |
168 |
120 |
160 |
125 |
410 |
|
TAL6247 |
1.28 |
12.22 |
32 |
6200 |
247 |
182 |
130 |
160 |
140 |
440 |
|
TAL6272 |
2.16 |
20.62 |
45 |
5500 |
272 |
196 |
140 |
175 |
150 |
475 |
|
TAL8302 |
3.46 |
33 |
78 |
4700 |
302 |
224 |
155 |
195 |
165 |
525 |
|
TAL8333 |
4.13 |
39.44 |
101 |
4350 |
333 |
238 |
170 |
220 |
180 |
580 |
|
TAL8363 |
6.6 |
63 |
140 |
4200 |
363 |
260 |
185 |
250 |
200 |
650 |
|
TAL8396 |
8.5 |
81.11 |
197 |
3900 |
396 |
280 |
200 |
270 |
215 |
700 |
|
TAL8425 |
11 |
105 |
217 |
3600 |
425 |
294 |
210 |
290 |
230 |
750 |
|
TAL8457 |
14 |
133.7 |
320 |
3450 |
457 |
322 |
230 |
310 |
240 |
790 |
|
TAL8493 |
17 |
162.3 |
355 |
3300 |
493 |
352 |
250 |
320 |
260 |
840 |
|
TAL0537 |
25 |
238.75 |
548 |
3200 |
537 |
374 |
265 |
350 |
280 |
910 |
|
TAL0580 |
35 |
334.25 |
770 |
3100 |
580 |
415 |
290 |
370 |
305 |
980 |
|
TAL0630 |
42 |
401.1 |
920 |
3000 |
630 |
452 |
320 |
400 |
330 |
1060 |
HangZhou EPT Couplings Co., Ltd.-HangZhou EPT Couplings Co., Ltd.
Performance parameters:
|
Model NO. |
Tightening torque(Nm) |
Mass(Kg) |
Torsional stiffness KT(Nm/radxE+06) |
Moment of inertia (Kgm^2) |
Performance data of spacer(per meter) |
Angular misalignment |
Parallel misalignment |
|||||
|
Mass(Kg) |
Torsional stiffness ΔKT(Nm /radxE+06) |
Moment of inertia (Kgm^2) |
Max θmax (deg) |
Angular stiffness (Nm/radxE+03) |
Max(mm) |
Axial force (N) |
||||||
|
TAL6115 |
45 |
4.5 |
0.412 |
0.0072 |
4.7 |
0.00389 |
0.00612 |
0.375 |
105.4 |
2 |
902 |
|
|
TAL6135 |
45 |
6.7 |
0.72 |
0.014 |
6.0 |
0.099 |
0.013 |
0.375 |
113.6 |
2.3 |
1056 |
|
|
TAL6152 |
45 |
10.3 |
1.163 |
0.028 |
6.9 |
0.158 |
0.021 |
0.375 |
148.3 |
2.4 |
1368 |
|
|
TAL6175 |
85 |
15.6 |
1.695 |
0.058 |
10.4 |
0.289 |
0.035 |
0.375 |
160.3 |
2.6 |
2100 |
|
|
TAL6196 |
160 |
21.3 |
2.563 |
0.08 |
11.8 |
0.455 |
0.047 |
0.375 |
198.6 |
2.8 |
2306 |
|
|
TAL6210 |
160 |
31.2 |
2.988 |
0.19 |
13.5 |
0.702 |
0.085 |
0.375 |
203.5 |
3.0 |
3256 |
|
|
TAL6231 |
160 |
32.2 |
3.596 |
0.24 |
15.1 |
0.836 |
0.129 |
0.375 |
382.8 |
3.1 |
3654 |
|
|
TAL6247 |
160 |
42.8 |
6.420 |
0.32 |
22.6 |
1.536 |
0.172 |
0.375 |
425.8 |
3.3 |
3946 |
|
|
TAL6272 |
280 |
55.6 |
6.852 |
0.5 |
26.5 |
2.03 |
0.216 |
0.375 |
510.4 |
3.5 |
4653 |
|
|
TAL8302 |
280 |
68.2 |
12.856 |
0.72 |
39.5 |
2.76 |
0.444 |
0.25 |
1989 |
2.8 |
6542 |
|
|
TAL8333 |
340 |
104.3 |
17.63 |
1.51 |
46.3 |
5.422 |
0.522 |
0.25 |
2653 |
3.0 |
9326 |
|
|
TAL8363 |
540 |
135.2 |
23.956 |
2.2 |
51.2 |
7.032 |
0.755 |
0.25 |
3456 |
3.3 |
12681 |
|
|
TAL8396 |
540 |
175.2 |
32.85 |
3.3 |
56.1 |
8.865 |
0.923 |
0.25 |
7864 |
3.4 |
13653 |
|
|
TAL8425 |
800 |
220.1 |
43.963 |
5.2 |
71.5 |
14.65 |
1.101 |
0.25 |
6859 |
3.6 |
15782 |
|
|
TAL8457 |
800 |
278.2 |
55.63 |
7.9 |
87.3 |
16.83 |
1.522 |
0.25 |
6971 |
3.8 |
16524 |
|
|
TAL8493 |
800 |
320.2 |
62.356 |
9.6 |
94.6 |
21.32 |
2.11 |
0.25 |
7865 |
4.0 |
18936 |
|
|
TAL0537 |
1200 |
422.3 |
100.54 |
17.1 |
105.3 |
25.66 |
2.56 |
0.165 |
37698 |
4.0 |
18635 |
|
|
TAL0580 |
1200 |
582.2 |
133.45 |
26.5 |
136 |
40.37 |
4.03 |
0.165 |
45632 |
4.6 |
19886 |
|
|
TAL0630 |
1800 |
640.2 |
150.78 |
32.6 |
147 |
50.8 |
5.07 |
0.165 |
48265 |
5.2 |
23687 |
|
